Wristwatch · Concealed dial lady's wristwatch

Omega Concealed Dial Wristwatch Ref. 8060

Partially verified

This Omega concealed dial lady's wristwatch, reference 8060, dates to the 1960s. It is constructed from 18K yellow gold and features a geometric-patterned integrated bracelet set with diamonds. The watch employs a two-body, polished case design where the dial is concealed beneath a hinged lid, which is activated by a button located on the side of the case. The winding mechanism is positioned on the back of the case. Internally, the watch is powered by the Caliber 690, a baguette-shaped movement featuring a lateral lever escapement, a monometallic balance, and a shock absorber. The champagne-colored dial displays painted baton indexes accompanied by black gold baton hands. The watch is signed on the dial, case, and movement. The total approximate length of the piece is 175 mm, with a case diameter of 13 mm.

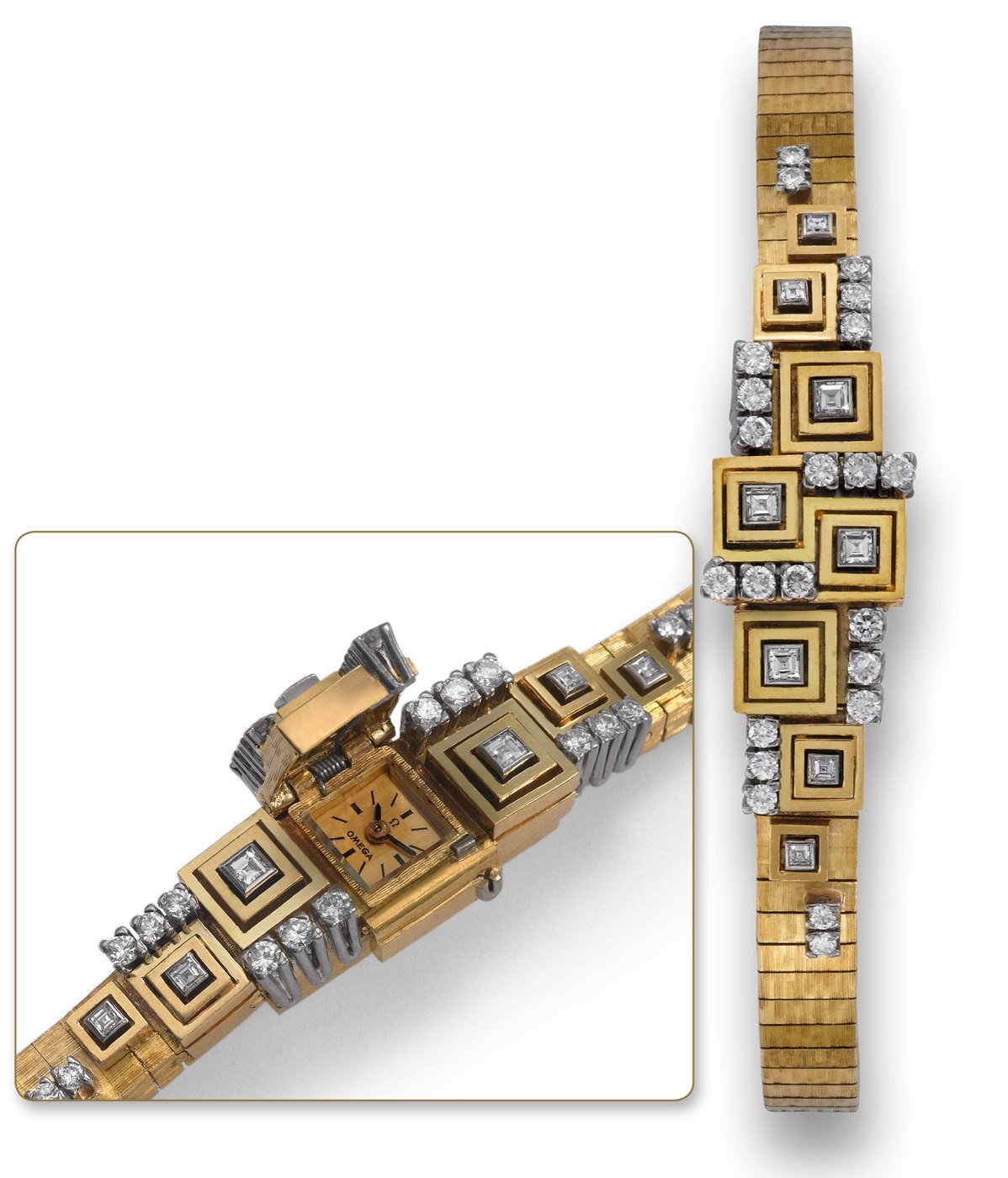

Omega concealed dial wristwatch in 18K gold and diamonds, shown with the dial cover closed (right) and open (left).
Omega concealed dial wristwatch in 18K gold and diamonds, shown with the dial cover closed (right) and open (left). — Antiquorum. Rights pending — permission not yet requested. Original source

Catalogue identity

Source
catalog.antiquorum.swiss
Category
Wristwatch · Concealed dial lady's wristwatch
Maker / attribution
Omega
Reference
8060
Catalogue / lot identifier
351
Source-reported date
1960s
Source-reported place
Not established
Source-reported serial
19580134

Source-reported attribution and specifications are not independent authentication. A listing does not establish present ownership, current display, availability or permission to reproduce.

Object description

Case and Dial Design

The reference 8060 features a two-body, polished 18K yellow gold case designed for concealment. The dial is protected by a hinged cover that opens to reveal the watch face, operated via a button on the side of the case. The exterior surfaces of the case and the integrated bracelet are decorated with a geometric pattern, set with diamonds that extend across the length of the bracelet and the back of the watch.

The dial itself is finished in champagne and features painted baton indexes. The time is displayed using black gold baton hands. The winding mechanism is located on the back of the case, contributing to the streamlined, jewelry-oriented appearance of the wristwatch.

The auction description reports the case as being in very good condition with slight scratching, while the dial is graded as very good.

Evidence for this section
  • “concealed dial revealed through a button on the side”
  • “the front set with diamonds in a geometric pattern extending onto the bracelet”
  • “Champagne with painted baton indexes. Black gold baton hands.”

Movement and Escapement

The movement is constructed with a lateral lever escapement, a monometallic balance, a self-compensating balance spring, and includes a shock absorber.

The caliber is signed, consistent with the dial and case. Although the movement is currently in working order, the auction house report recommends an overhaul to ensure optimal performance.

The baguette configuration is notable for its narrow, elongated shape, allowing it to fit into the compact 13 mm diameter case architecture provided by the reference 8060 design.

Evidence for this section
  • “The caliber 690 is an extremely rare baguette movement made by Omega for jeweled lady's watches”
  • “features a lateral lever escapement”
  • “monometallic balance, shock absorber, self-compensating balance spring.”

Provenance and Included Accessories

The object is offered as a single lot, identified as lot number 351, and is sold without reserve.

The auction documentation provides a grading system for the object, marking the overall condition as AAA Excellent, with specific sub-grades for the case, movement, and dial. These reports serve as the basis for the current cataloguing of its physical state and mechanical status.

Evidence for this section
  • “Accompanied by a fitted box, warranty (now void), and instruction booklet.”
  • “To be sold without reserve”
  • “Grading System Grade: AAA Excellent”

Open research questions

  • What is the specific production timeline or volume for the Omega Caliber 690 baguette movement?
  • Are there variations of the diamond geometric pattern for reference 8060 held in museum collections?

Source evidence

Recorded claims and source quotations for Omega Concealed Dial Wristwatch Ref. 8060
FieldSource-reported valueSource quotation
Reference8060“Ref. 8060”
Case Number554135“case No. 554135”
Movement Number19580134“No. 19580134”
Case Material18K yellow gold“18K yellow gold”
MovementCal. 690“Cal. 690”
Dimensions13 mm case diameter, 175 mm overall length“Dim. 13 mm. Approx overall length. 175 mm.”

Visible details

  • Hinged lid mechanism activated by a side button
  • Geometric diamond settings on the case and integrated bracelet
  • Baguette-style movement profile
  • Champagne dial with painted baton indexes

Research qualifications

  • The exact country of manufacture is not stated in the source.
  • The movement requires an overhaul, according to the auction report.

Photograph identity and source facts were screened before import; rights clearance remains pending.

Consulted source

OMEGA REF. 8060 CONCEALED DIAL Omega, No. 19580134, case No. 554135, Ref. 8060. Made in the 1960's. Very fine, unusual and elegant, 18K yellow gold and diamond lady's wristwatch with an integrated 18K yellow gold and diamond bracelet. Accompanied by a fitted box, warranty (now void), and instruction booklet. To be sold without reserve
