Case and Dial Design

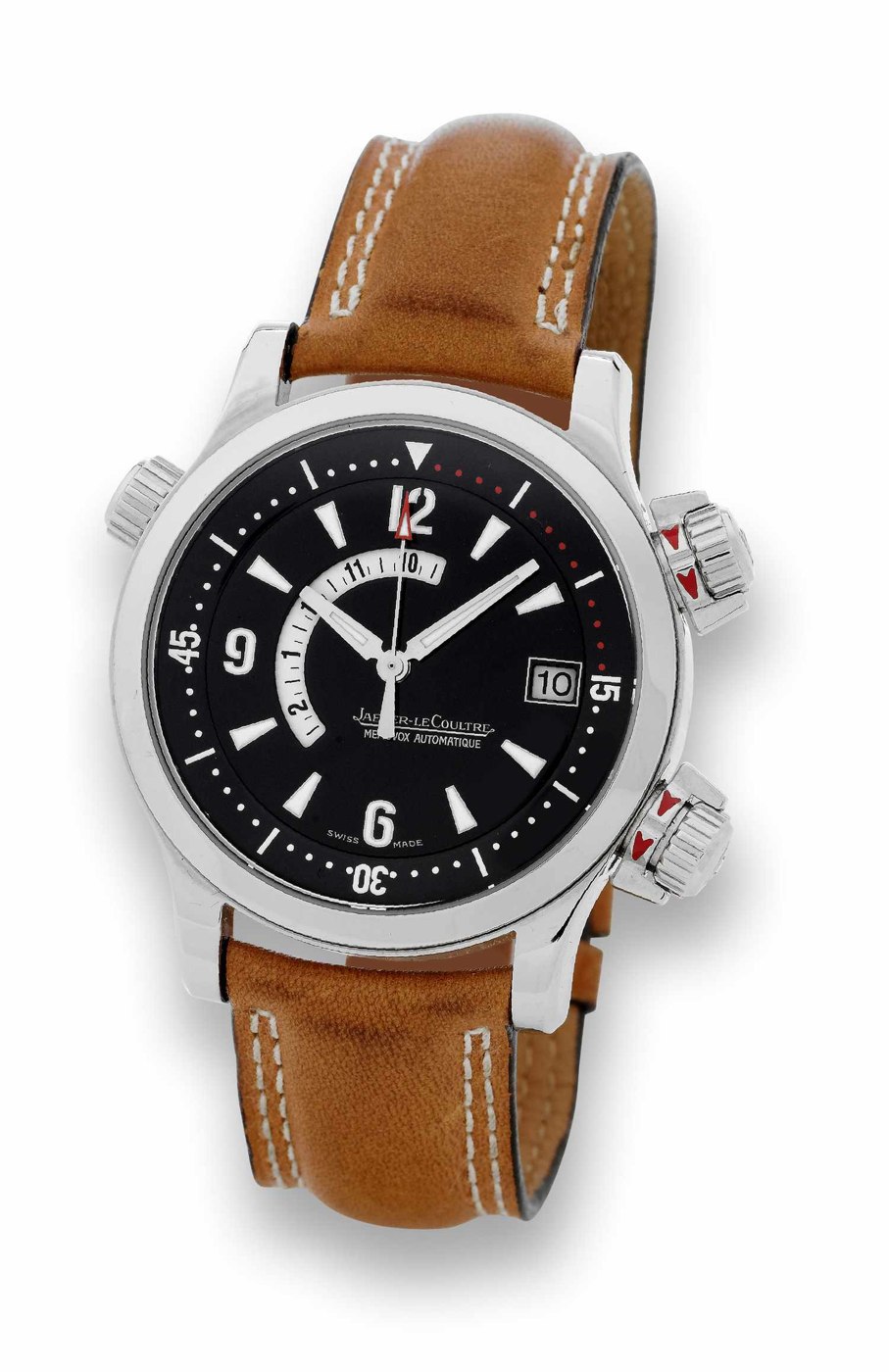

The watch is housed in a polished stainless steel three-body case measuring 41 mm in diameter and 16 mm in thickness. It features concave, curved lugs and a case back secured by four screws, which also displays the applied Master Compressor 1000 hours logo. The watch is distinguished by its triple-crown configuration: one at 2 o'clock for the alarm, one at 4 o'clock for time setting and winding, and one at 10 o'clock for the internal revolving dive timing disc. Both the alarm and time-setting crowns are fitted with the brand's 'Compressor Key' locking system.
The dial is black with applied luminous Arabic numerals and dart indexes. It incorporates an outer revolving disc designed for dive time measurement, alongside apertures dedicated to the alarm indication and the date display. The hands are made of luminous steel, consistent with the tool-watch aesthetic of the Master Compressor line. A sapphire crystal protects the dial, ensuring water resistance for the mechanical assembly.
Evidence for this section
- “Three-body, solid, polished, case back with 4 screws and the applied Master Compressor 1000 hours logo”
- “alarm winding crown at 2, time-setting and winding crown at 4, both with "Compressor Key”
- “Black with applied luminous Arabic numerals and dart indexes, outer revolving disc for the dive time, apertures for the alarm indication and date.”
