The Encyclopedia of Horology

Table clock · Friedberg

Astronomical table clock

Verified

Astronomical table clock. Movement signed: Elias Kreitt Mayr inn Fridtberg. End of 17th century.

Technical facts

Inventory number
MIH IV-154
Museum title (French)
Horloge de table à indications astronomiques
Object type
Table clock
Place of production
Friedberg
Dating
1680 - 1700
Materials and techniques (catalogue wording)
Laiton, Argent, Alliage ferreux
Materials (English translation)
Brass, Silver, Ferrous alloy
Dimensions (catalogue)
Dimensions: 150.0 x 230.0 x 230.0 mm; poids: 5.000 kg
Inscriptions (catalogue)
Elias Kreitt Meyr inn Fridtberg (Mouvement)
Inscriptions (English translation)
Elias Kreitt Meyr inn Fridtberg (movement)

Historical significance

  • Astronomical table clock. Movement signed: Elias Kreitt Mayr inn Fridtberg. End of 17th century.

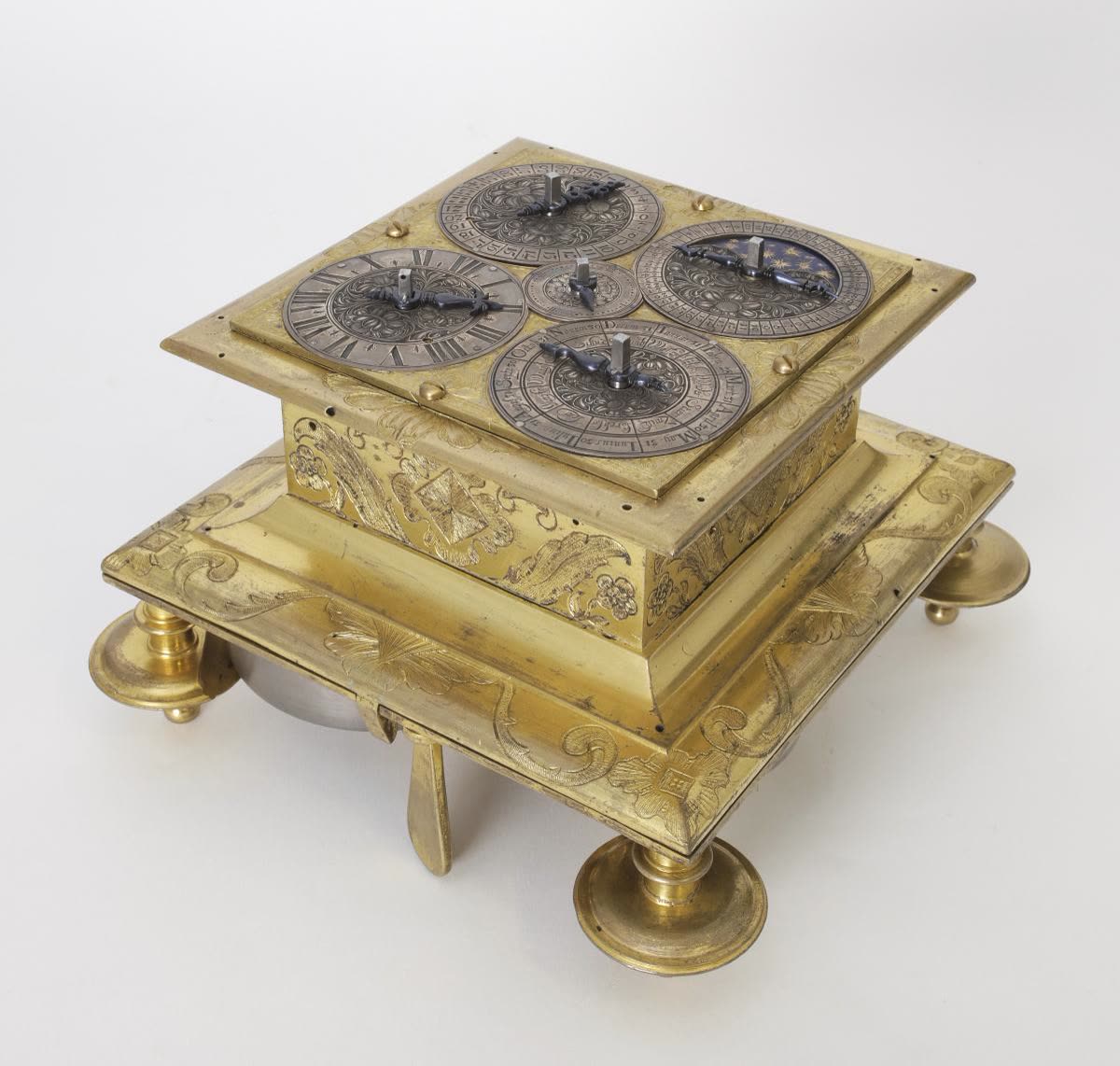

  • The square case, which rests on four moulded feet, is engraved with geometrical motifs decorated with flowers and palm leaves.

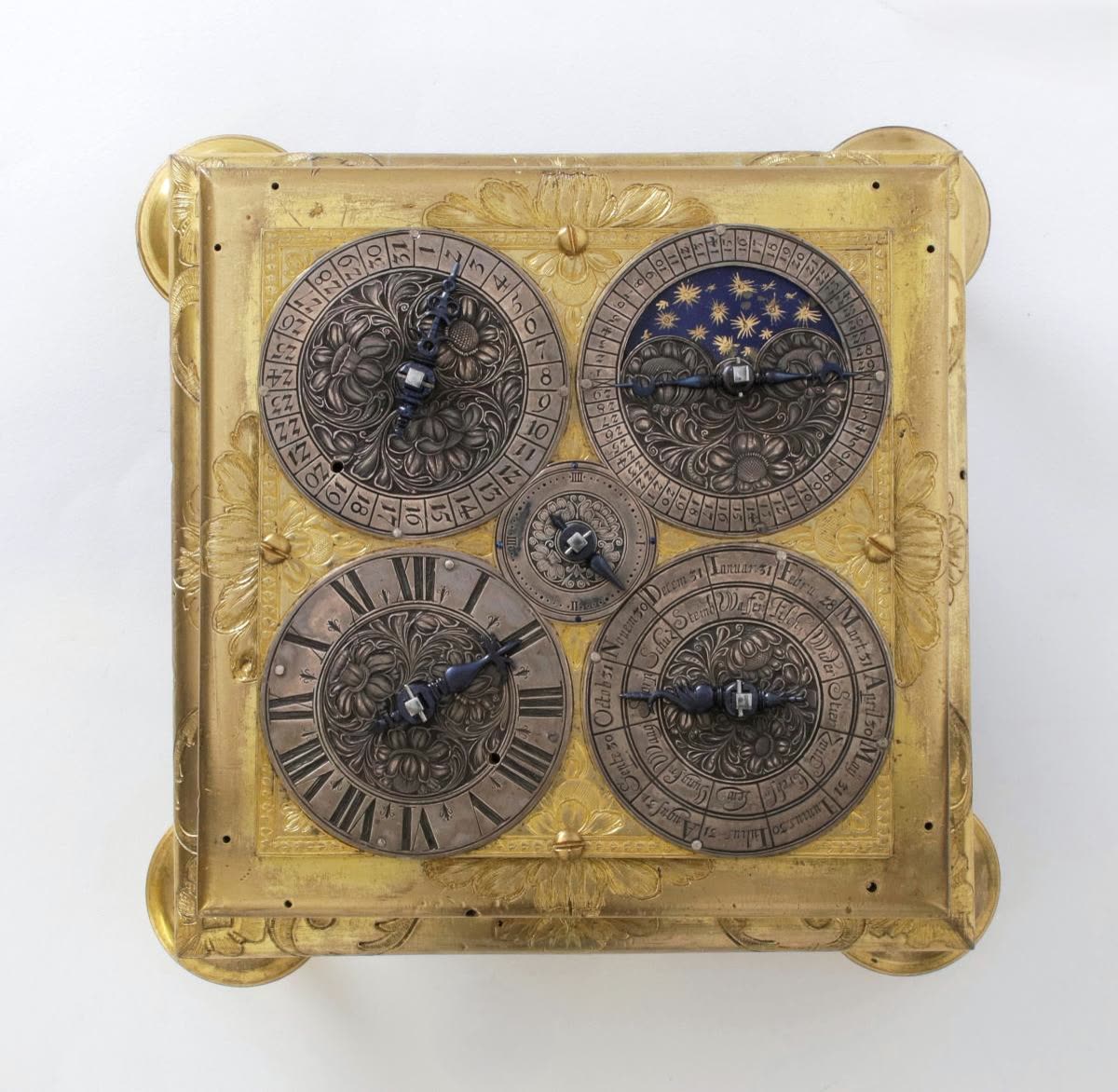

  • Five silver dials applied on an engraved brass plate indicate, at bottom left, the hours, engraved in Roman numerals; at bottom right, the months with their astrological sign and number of days; at the centre, the quarter hours; above left, the date; and above right, the phases and age of the moon. The hands are blued steel.

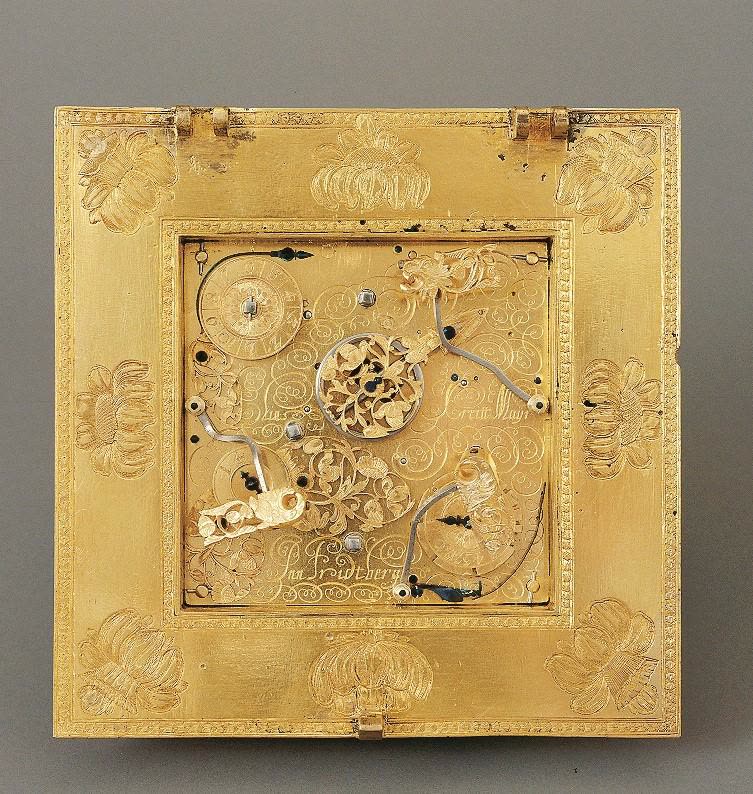

  • The movement features a fusee-and-chain and a verge escapement and a balance without hairspring. The balance is held in place by a circular single-footed balance cock, engraved and pierced with strawberry flowers. It is also fitted with an hour and four-quarter strike, whose engraved and pierced gilded brass hammers strike three bells on the under side of the clock. The hour strike dial, numbered from 1 to 12, the four-quarter strike dial, numbered from 1 to 4, and a dial indicating the wind of the mainspring, engraved from 1 to 10, can all be seen on the engraved back plate.

Photographs

Astronomical table clock (MIH IV-154)
Astronomical table clock (MIH IV-154) — Musée international d'horlogerie, La Chaux-de-Fonds, Museum collection photograph, rights review pending. MIH collection record
Astronomical table clock (MIH IV-154)
Astronomical table clock (MIH IV-154) — Musée international d'horlogerie, La Chaux-de-Fonds, Museum collection photograph, rights review pending. MIH collection record
Astronomical table clock (MIH IV-154)
Astronomical table clock (MIH IV-154) — Musée international d'horlogerie, La Chaux-de-Fonds, Museum collection photograph, rights review pending. MIH collection record
Astronomical table clock (MIH IV-154) — Table-clock exposed astronomical mechanism
Astronomical table clock (MIH IV-154) — Table-clock exposed astronomical mechanism — Musée international d'horlogerie, La Chaux-de-Fonds; individual photographer not specified in catalogue, Museum collection photograph — rights pending; permission not independently cleared; resized JPEG copy. MIH exact accession carousel — additional view source and photograph checked

Photographs are illustrative examples of the type, not necessarily the exact object described. Verify details against the source file page.

Sources & references

  1. Musée international d'horlogerie, online collection record, inv. IV-154: https://collection.mih.ch/fr/collection/item/36554/

Where sources disagree, the disagreement is stated rather than resolved silently.
